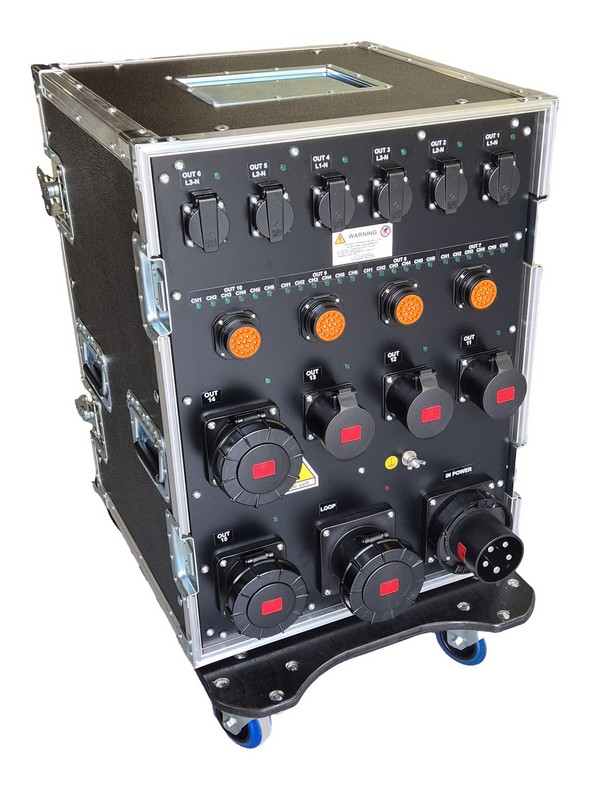

PBOX 125A. RC15U. IN: 125A5P+ LOOP OUT: 4xSSX, 6x16A3P, 3x32A5P, 2x63A5P. LCD.
7.917,39€ (6.543,30€ + IVA)
Out of stock
Description
IN: 125amp 5p 6h 400V IP67 (IN). + LOOP
OUT: 6 x C-FORM 16amp 3p 6h 230V IP44 (OUT).
4 x SYNTAX® SSX 19p IP67
3 x C-FORM 32amp 5p 6h 400V IP44 (OUT).
2 x C-FORM 63amp 5p 6h 400V IP67 (OUT).
1 analogic voltmeter + 1 voltmeter selector switch
(control IN voltage)
1 MCB 125amp 4p-C 10.000A (MAIN) + 1 shunt release
+ 1 panic button
1 digital multimeter 96x96mm. with LCD graphic display.
1 RCCB 40amp 4p I?n 0,03A AC type + 6 x MCB 16amp
1pN-C (6 x C-FORM 16amp single-phase).
4 x RCCB 40amp 4p I?n 0,03A AC type + 24 x MCB
16amp 1pN-C 4.500A (4 x SYNTAX® SSX 19p).
3 x RCBO 32amp 4p-C I?n 0,03A AC type (3 x C-FORM
32amp three-phase).
2 x RCBO 63amp 4p-C I?n 0,3A AC type (2 x C-FORM
63amp three-phase).
Nominal data: IEC 61439-1 & 2, Ue=400V 3pH+N+E,
fn=50Hz, InA=125amp, Icc=6.000A, IP=44, RDF=50%
